Roestvrijstalen wartel
- Duurzaam materiaal: Body made from stainless steel 304/316 for high strength and durability.
- Weerbestendig: Hermetic seal and O-ring made from NBR and silicone rubber for excellent protection against environmental factors.
- Hoge bescherming: Rated IP68 and IP69K for superior waterproof and dustproof performance.
- Breed temperatuurbereik: Werkt efficiënt bij temperaturen van -40℃ tot 100℃, met een kortstondige weerstand tot 120℃.
- Veelzijdige draadopties: Available in Metric, PG, NPT, and G thread sizes.
- Goedkeuringen: CE-certificering en ISO9001-gecertificeerd.
- Aanpassing: Aanpassingsopties beschikbaar op aanvraag.
Stuur uw vereisten, wij zullen u binnen 12 uur een offerte geven
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com

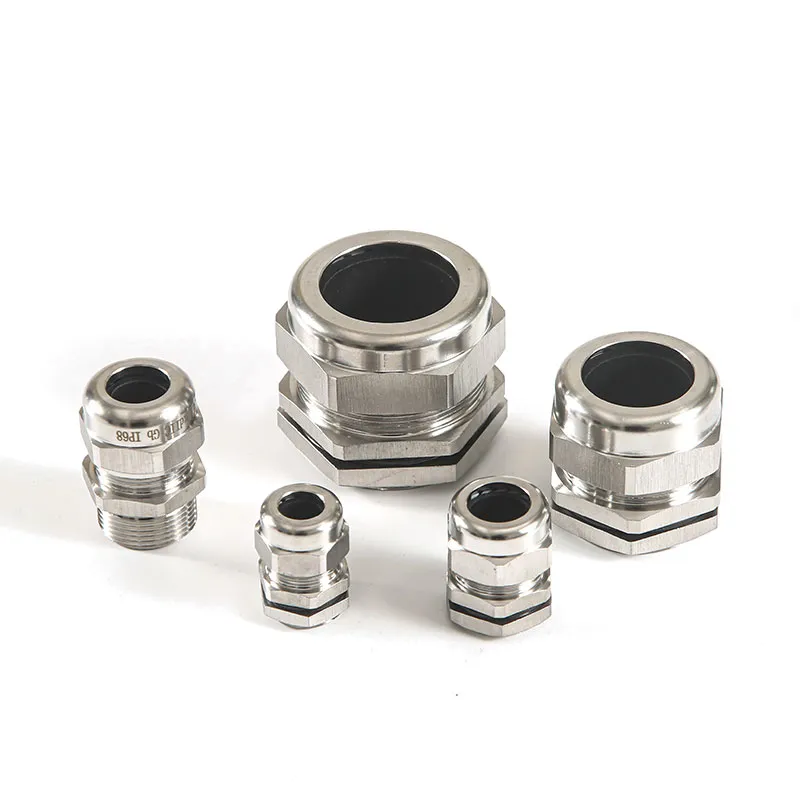

VIOX Stainless Steel Cable Gland
Overzicht
The VIOX Stainless Steel Cable Gland is designed for secure and reliable cable entry in various industrial applications. Made from high-quality stainless steel 304 and 316, this cable gland offers excellent resistance to corrosion, high temperatures, and mechanical stress. It ensures a hermetic seal with NBR and silicone rubber, making it suitable for both indoor and outdoor use. The product is certified with CE and ISO9001, ensuring high standards of quality and safety.
Belangrijkste kenmerken
- Duurzaam materiaal: Body made from stainless steel 304/316 for high strength and durability.
- Weerbestendig: Hermetic seal and O-ring made from NBR and silicone rubber for excellent protection against environmental factors.
- Hoge bescherming: Rated IP68 and IP69K for superior waterproof and dustproof performance.
- Breed temperatuurbereik: Werkt efficiënt bij temperaturen van -40℃ tot 100℃, met een kortstondige weerstand tot 120℃.
- Veelzijdige draadopties: Available in Metric, PG, NPT, and G thread sizes.
- Goedkeuringen: CE-certificering en ISO9001-gecertificeerd.
- Aanpassing: Aanpassingsopties beschikbaar op aanvraag.
Specificaties
| Item | Details |
|---|---|
| Lichaam | Stainless steel 304/316 |
| Claw | PA |
| Sealing and Sealing Ring | NBR, Silicone rubber |
| Productcertificering | CE-certificering en ISO9001 |
| Beschermingsgraad | IP68, IP69K |
| Werktemperatuur | -40℃ tot 100℃, korte tijd tot 120℃ |
Technische gegevens
G Draad
| Productcode | Draad AG | Kabelbereik (mm) | Schroefdraad O.D. (mm) | Thread No. Per Inch | Schroefdraadlengte GL (mm) | Joint Length (mm) | Sleutelmaat (mm) |
|---|---|---|---|---|---|---|---|
| G1/4-SS | G1/4 | 3-6.5 | 13.1 | 19 | 7 | 19 | 14 |
| G3/8-SS | G3/8 | 4-8 | 16.6 | 19 | 8 | 19 | 18 |
| G1/2-SS | G1/2 | 6-12 | 20.9 | 14 | 8 | 22 | 22 |
| G3/4-SS | G3/4 | 13-18 | 26.4 | 14 | 9 | 25 | 30 |
| G1-SS | G1 | 18-25 | 33.2 | 11 | 11 | 29 | 40 |
| G11/4-SS | G1-1/4 | 25-33 | 41.9 | 11 | 13 | 35 | 50 |
| G11/2-SS | G1-1/2 | 32-38 | 47.8 | 11 | 14 | 37 | 57 |
| G2-SS | G2 | 37-44 | 59.6 | 11 | 14 | 38 | 64 |
| G21/2-SS | G2-1/2 | 42-52 | 75.1 | 11 | 15 | 38 | 77 |
| G3-SS | G3 | 65-70 | 87.8 | 11 | 15 | 48 | 94 |
NPT-schroefdraad
| Productcode | Draad AG | Kabelbereik (mm) | Schroefdraad O.D. (mm) | Thread No. Per Inch | Schroefdraadlengte GL (mm) | Joint Length (mm) | Sleutelmaat (mm) |
|---|---|---|---|---|---|---|---|
| NPT1/4-SS | NPT1/4 | 3-6.5 | 13.6 | 18 | 7 | 19 | 14 |
| NPT3/8-SS | NPT3/8 | 4-8 | 17 | 18 | 8 | 19 | 18 |
| NPT1/2-SS | NPT1/2 | 6-12 | 21.2 | 14 | 8 | 22 | 22 |
| NPT3/4-SS | NPT3/4 | 13-18 | 26.5 | 14 | 9 | 25 | 30 |
| NPT1-SS | NPT1 | 18-25 | 33.2 | 11.5 | 11 | 29 | 40 |
| NPT11/4-SS | NPT1-1/4 | 25-33 | 41.9 | 11.5 | 13 | 35 | 50 |
| NPT11/2-SS | NPT1-1/2 | 32-38 | 48 | 11.5 | 14 | 37 | 57 |
| NPT2-SS | NPT2 | 37-44 | 60 | 11.5 | 14 | 38 | 64 |
| NPT21/2-SS | NPT2-1/2 | 42-52 | 72.6 | 8 | 15 | 38 | 77 |
| NPT3-SS | NPT3 | 65-70 | 88.6 | 8 | 15 | 48 | 94 |
Toepassingen
The VIOX Stainless Steel Cable Gland is ideal for use in various industrial applications requiring secure and reliable cable entry. It is suitable for environments exposed to harsh conditions, including high temperatures, chemicals, and mechanical stress. Its robust design and reliable performance make it suitable for both commercial and industrial environments, including hazardous areas, modular entry systems, the beverage industry, food manufacturing, renewable energy, industrial automation, outdoor lighting, and communication base stations.
Technische gegevens
- Materiaal: Stainless steel 304/316
- Claw: PA
- Sealing and Sealing Ring: NBR, Silicone rubber
- Productcertificering: CE-certificering en ISO9001
- Beschermingsgraad: IP68, IP69K
- Werktemperatuur: -40℃ tot 100℃, korte tijd tot 120℃
- Functie: Suitable for use in harsh environments, providing strain relief and protection against water, dust, salt, acids, alcohol, oil, and common solvents
- Aanpassing: Aanpassingsopties beschikbaar op aanvraag
