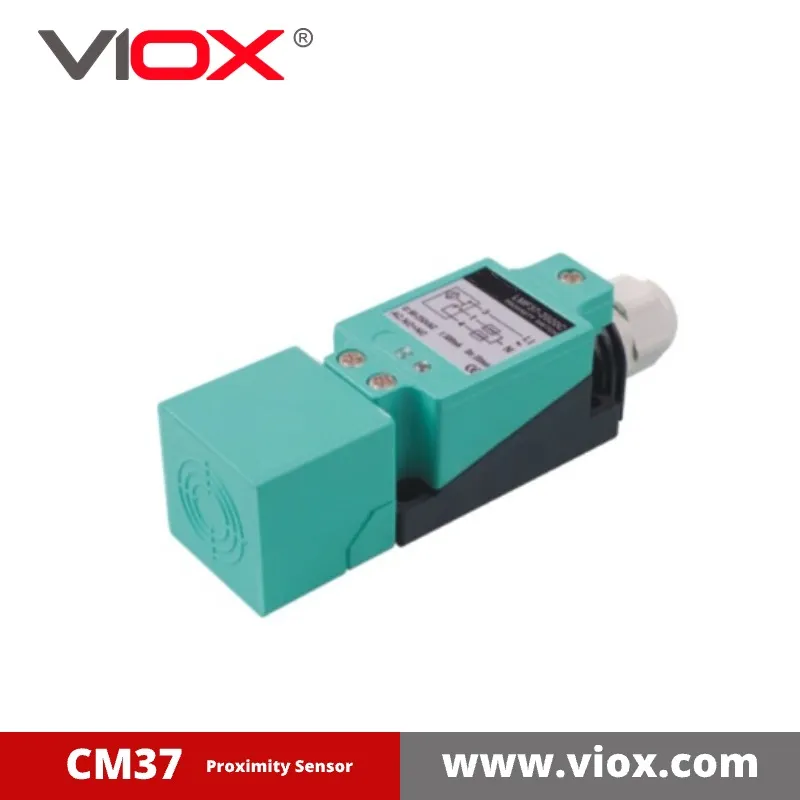

CM37 mahtuvuslik lähedusandur
Discover the CMF37 Capacitive Proximity Sensor by VIOX, offering versatile four output modes: NO, NC, NPN, and PNP. Designed for accurate sensing up to 25mm, this rugged sensor is resistant to dust, moisture, and contaminants. Supporting a wide voltage range (DC 10-30V, AC 90-250V), it includes high output current (DC: 200mA, AC: 300mA) and low power consumption. Built with durable ABS resin and an IP54 protection rating, it reliably detects conductors and dielectric materials in challenging environments.
Saatke oma nõuded, me teeme teile hinnapakkumise 12 tunni jooksul.
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
| Mudel | CM37 | |||
| Mõõde |  |
|||
| Tunda kaugust | 0~25mm±10% | |||
| Mittekorraline tüüp | DC10~30VDC | NPN | EI | CM37-3025NA |
| NC | CM37-3025NB | |||
| NO+NC | CM37-3025NC | |||
| PNP | EI | CM37-3025PA | ||
| NC | CM37-3025PB | |||
| NO+NC | CM37-3025PC | |||
| Kahejuhtmeline süsteem | EI | CM37-3025LA | ||
| NC | CM37-3025LB | |||
| AC90~250VAC | EI | CM37-2025A | ||
| NC | CM37-2025B | |||
| NO+NC | CM37-2025C | |||
| Väljundvool | DC | 200mA | ||
| AC | 300mA | |||
| Väljundpinge tipp | DC type below 3V, Ac type below 7V DC<3V, AC<7V | |||
| Tarbimisvool | DC tüüp 8mA 12V juures, 15mA 24V juures, AC alla 10mA DC<15mA, AC<10mA | |||
| Standardne tuvastatud objekt | Conductors and dielectric materials | |||
| Korratavus | 0.05 | |||
| Vastussagedus | DC50Hz/AC10Hz | |||
| Ümbritseva õhu temperatuur | -25℃-+75℃ | |||
| Isolatsioonikindlus | 50MΩ | |||
| Koorematerjal | ABS Resin | |||
| Kaitseklass | IP54 | |||
